+31 40 8080 193tube laser or plate laserWhich one suits your work? Both are fiber lasers, but a sheet laser cuts flat sheet metal, while a tube laser processes tubes and profiles. In this comparison, you will see the differences, the applications, and when to choose which technique.
Table of contents
Tube laser or plate laser: what is the difference?
The difference between a tube laser and a plate laser lies in the material shape and the movement. A plate laser operates on a flat bed and cuts plates; a tube laser clamps the tube and rotates it so that the head can cut all around. As a result, a tube laser creates cutouts, miters, and connections that are not possible on plate.
| Aspect | Sheet metal laser | tube laser |
|---|---|---|
| Material form | Flat plate | Round tube, box section, profile |
| Typical products | Panels, fittings, decorative plate | Frames, structures, piping |
| Movement | Head over flat bed | Rotary clamping of the tube |
| Strong in | Large series of surface work | Miters, recesses, joints |
When do you choose a sheet metal laser?
A sheet metal laser is the choice if you primarily cut flat parts: panels, fittings, sheet metal, and machine parts. For large series of flat work, a sheet metal laser with automatic loading is the most productive.
When do you choose a tube laser?

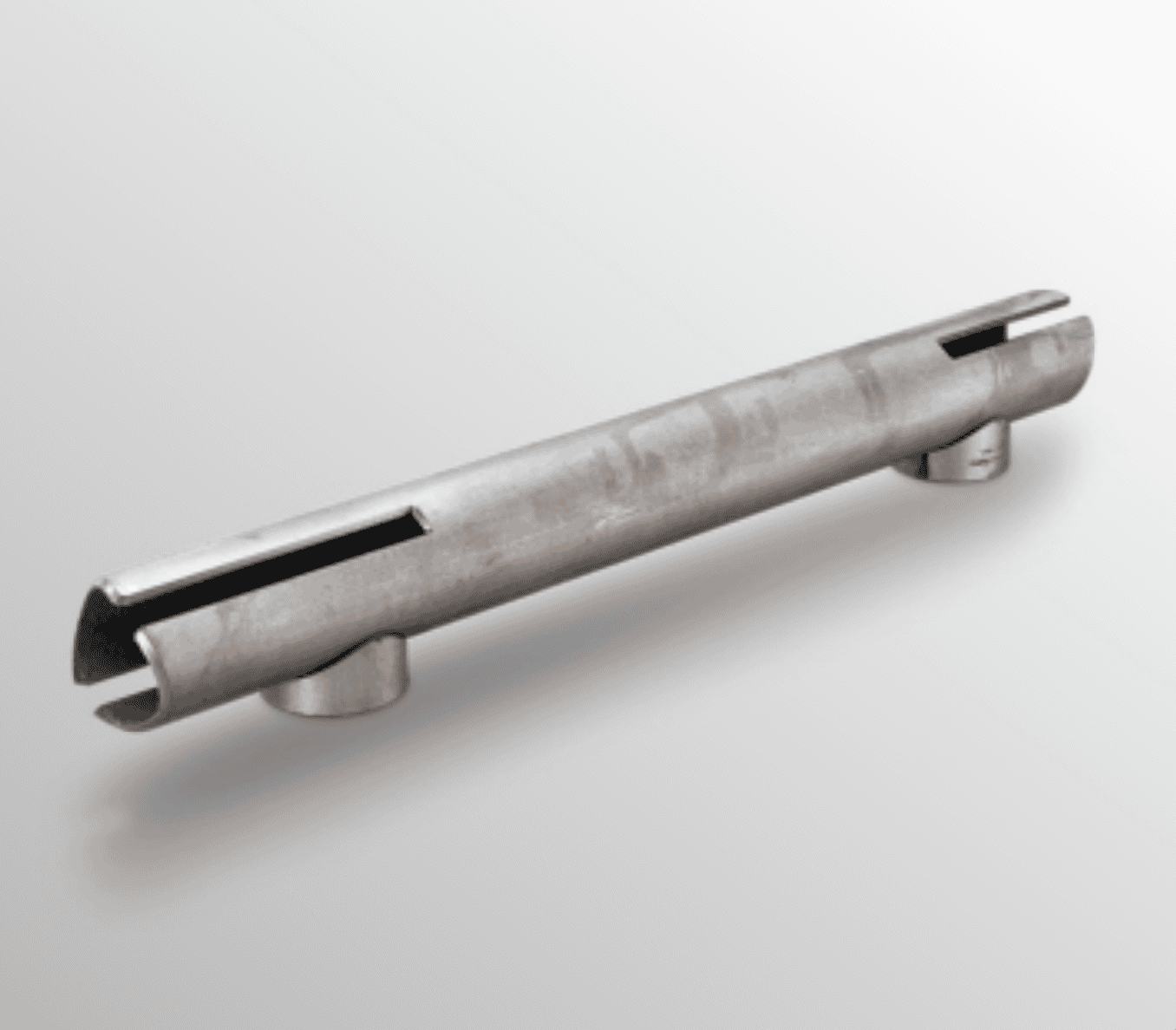

You choose a tube laser for tubes, box sections, and profiles, for example for frames, structures, and piping. Because the machine rotates the tube, you cut miters and recesses that fit seamlessly during assembly — a major advantage in construction work.
Combined and 3D solutions
There are also combined machines and 3D solutions that can handle both sheet and tube. This can be interesting for companies with mixed work, although a dedicated machine per shape usually remains faster and more accurate.
The right choice for your production
The choice depends on your products and volume. See also fiber or CO₂ for metal cutting and which laser power you need. You can read more background at Wikipedia on laser cutting.
Practice: combining tube and plate
Many metal companies process both sheet and tube. In practice, the ratio between the two determines whether you choose two dedicated machines or a combined solution. Consider your order book, lead time, and the desired accuracy during assembly.
Conclusion: tube laser or plate laser
When deciding between a tube laser and a sheet laser, everything revolves around your product: flat work requires a sheet laser, while tube and profile work requires a tube laser. Those who frequently process both should weigh a tube laser versus a sheet laser against a combined machine. MetaQuip is happy to help you determine the best configuration.
Frequently Asked Questions
What is the difference between a tube laser and a plate laser?
A sheet laser cuts flat sheet, while a tube laser processes tubes and profiles by rotation. The clamping and movement differ: a flat plane versus rotating around the tube.
Can you also cut tubes with a sheet metal laser?
Limited. Some sheet metal lasers have a tube option, but for structural tubing, a dedicated tube laser is faster and more accurate.
What materials can a tube laser cut?
The same metals as a sheet metal laser: structural steel, stainless steel, and aluminium, in the form of round tube, square box section, and profiles.
