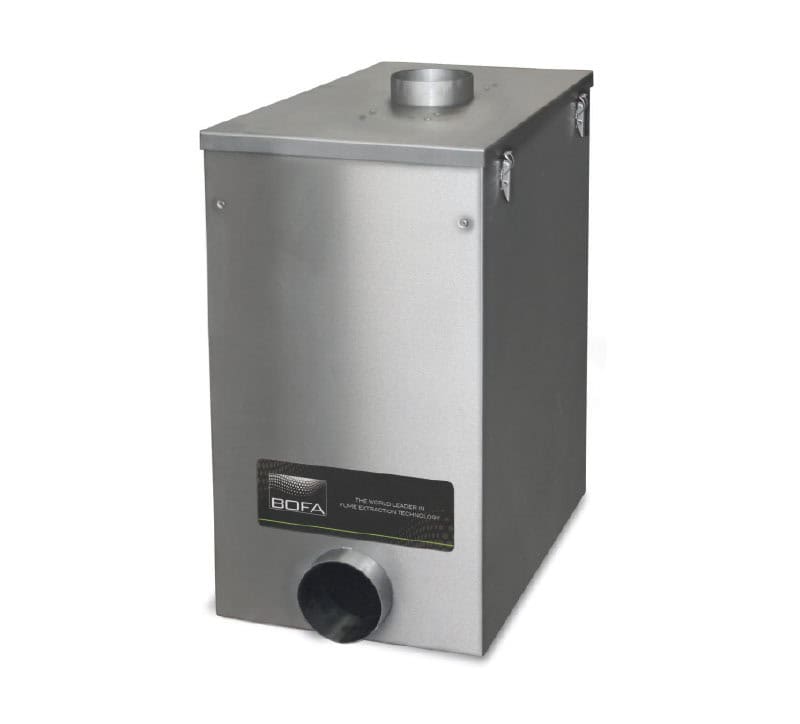

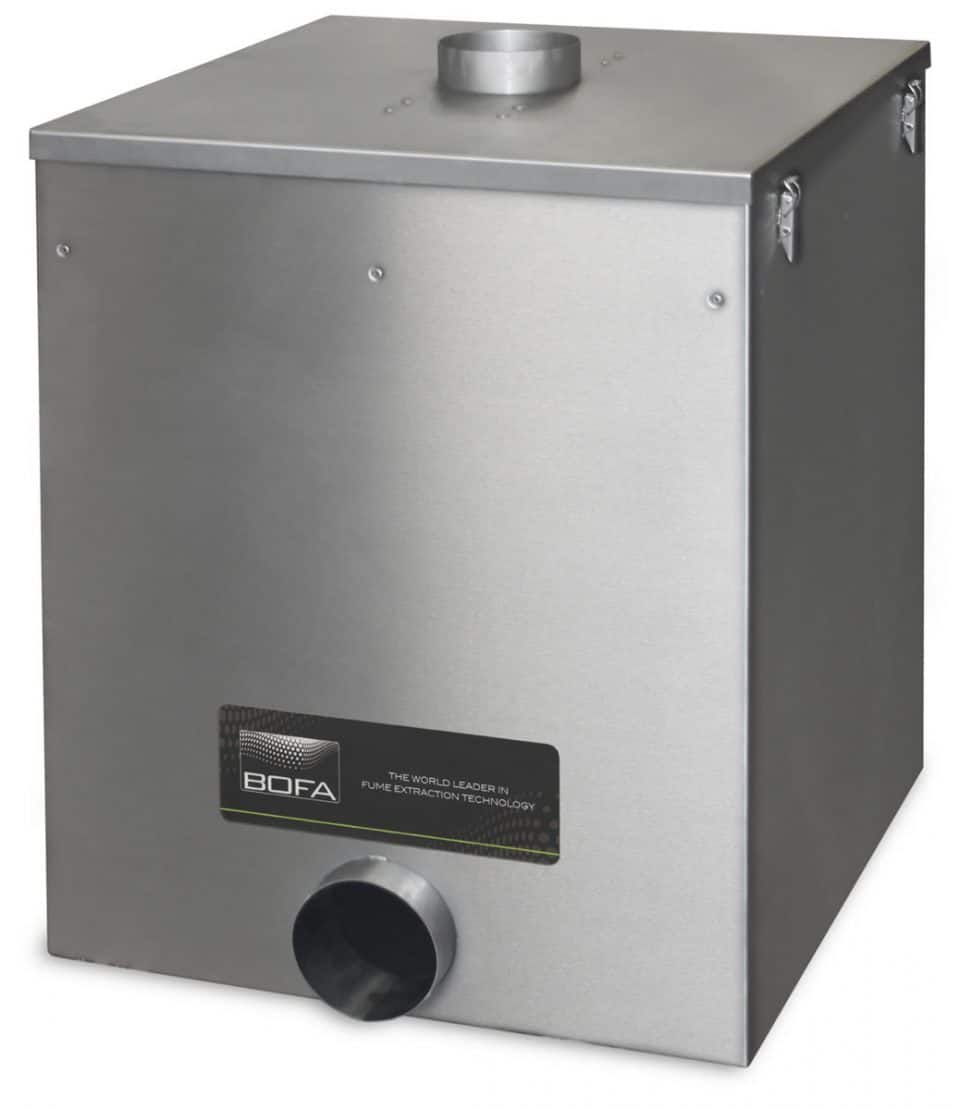

Passive filter laser machine – BOFA ILF300 & ILF600

Description

Increases filter capacity for large amounts of dust and particles.

MetaQuip supplies passive filter laser machine BOFA ILF300 and ILF600. These passive air filters for laser machines are used to increase the filter capacity. These passive filter devices are used in combination with an active BOFA air filter or exhaust fan. These In Line Filters have a longer lifespan for applications that generate large amounts of dust and particles.

Specially for applications with large amounts of dust or particles

The BOFA ILF 300 and ILF 600 inline pre-filters are specifically designed for applications where large amounts of dust or particles are released. The filter unit is installed next to the BOFA main filter system to increase the total filter capacity and extend the life of the main filters. A range of application-specific filter types and configurations are available on request.

Technical specifications

• Pre-filter (lower grade) specifications:
  • Filter media construction: Bag filter
  • Filter efficiency: 82% @ 1 microns
• Pre-filter (higher grade) specifications
  • Filter media construction: Pleated filter
  • Filter efficiency: 95% @ 0.9 microns
• Dimensions: (HxWxD):
  • ILF300: 796 x 638 x 328 mm
  • ILF600: 820 x 631 x 635 mm
• Cabinet Construction: Brushed stainless steel / Powder coated steel
• Weight: 27kg (ILF300) / 35kg (ILF600)
• Outlet: 125mm diameter
• Certification: CE
